High Precision NSK Bearing 6313ZZC4

  • Description
  • SKF
  • NSK
  • FAG
  • KOYO

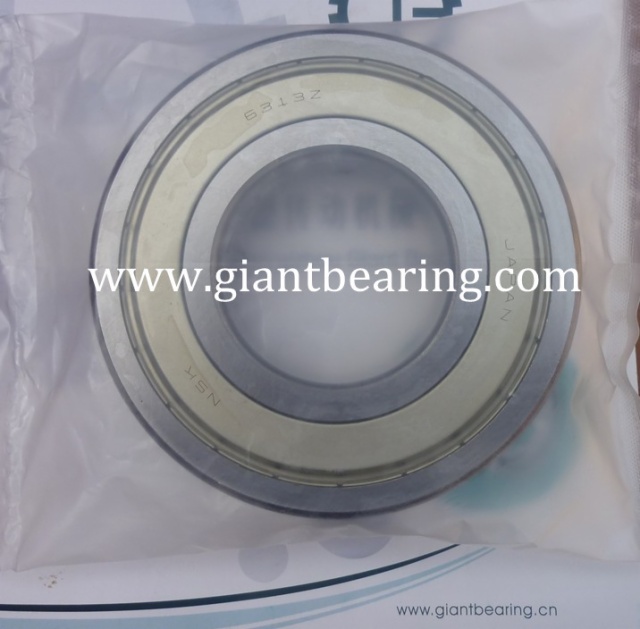

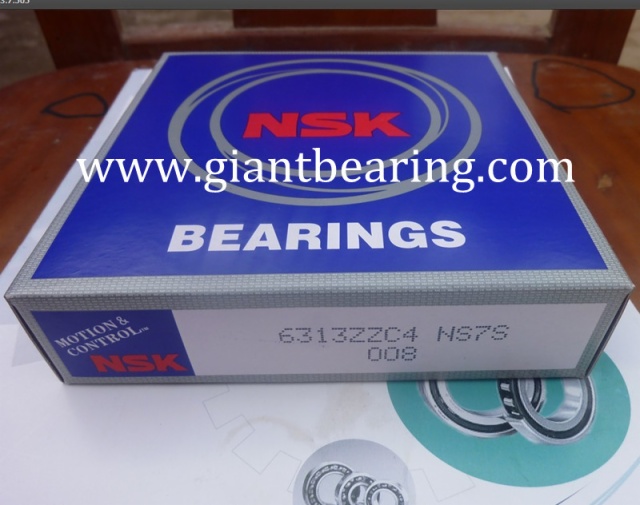

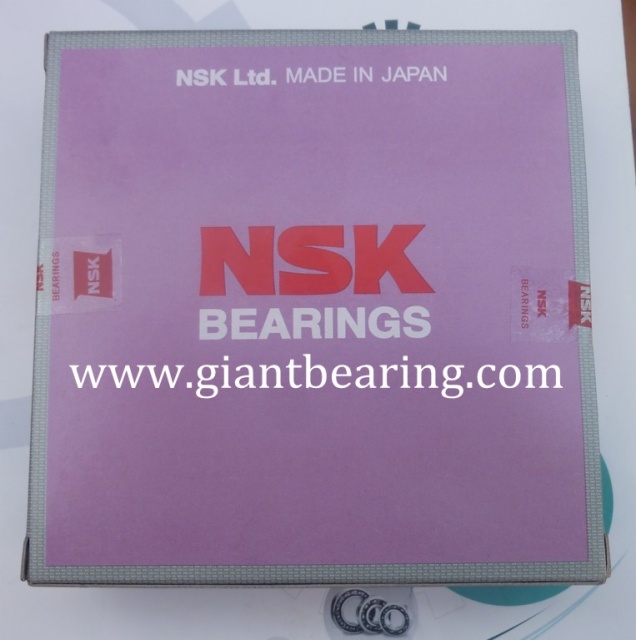

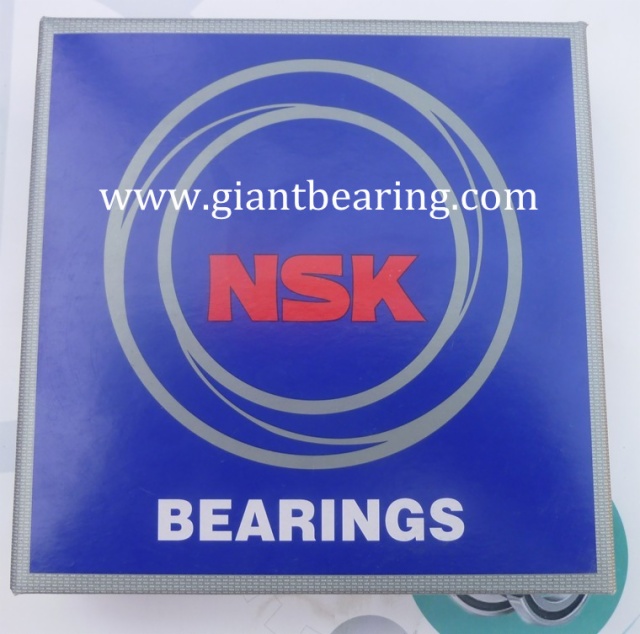

High Precision NSK Bearing 6313ZZC4  Deep Groove Ball Bearing

Deep groove ball bearings mainly take radial load as well as take moderate axial load,YBT's ball bearings products include: miniature ball bearings,single row deep ball bearings,double row deep groove ball bearings,angular contact ball bearings,flange ball bearings,self-aligning ball bearings.with less coefficient of friction, high limiting speed, large size range and various structure.

Features :
Shield / closure: open ball bearing, Z, ZZ, RS, 2RS,2RZ
Ball bearings snap ring: N, NR
Tolerance codes: ABEC-1, ABEC-3, ABEC-5, ABEC-7
Vibration level codes: V4, V3, V2, V1
Internal clearance codes: C2, C3, C4, C5
Ball bearings material: AISI52100, AISI440C, AISI304, AISI316, ceramic
Retainer: PTFE, nylon, PEEK or stainless steel
Hardness for rings and balls: 59 - 63HRC
Ball bearings bore size: 1 - 200mm

Versions:
Ball bearings with one or two side rubber seal RS, 2RS
With one or two side metal shields Z and ZZ (2Z)
With a snap ring groove in outer ring N
With a snap ring groove in outer ring and external snap ring NR
In different radial clearances C5, C4, C3, C2

Applications :
Typical applications: electric motors, automotive applications, home appliances, industrial equipment.
